FEA stress analysis example

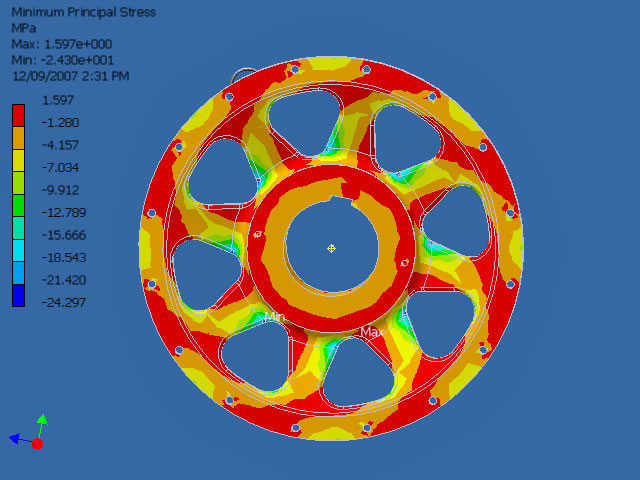

A drive flange used in a mining operation was showing minor cracking. An FEA analysis confirmed regions of high stress in the cracking area. Re-design of the part within the same geometrical limits, but with reduced stress levels, was achieved. This enabled a new part to be machined in readiness for changeover when failure was imminent, thus avoiding a prolonged high cost shut down of processing.
